H41, H42 Specification
| Nominal pressure | 2.5 | 4.0 | 6.4 | 10.0 | MPa |
| Shell test | 3.75 | 6.0 | 9.6 | 15.0 |
| High pressure sealing test | 2.75 | 4.0 | 7.04 | 11.0 |
| Low pressure sealing test | 0.6
|
| Applicable medium | C
| P | R | N |
| Water, Oil, Steam. | Nitric, Acid. | Acetic Acid | LPG |
| Applicable temperature | ≤425℃ | ≤100℃ | -40~+80℃ |
H44 Specification
| Test pressure | PN Nominal pressure |
| 2.5 | 2.5 | 6.4 | 10 |
| Shell test | 3.75 | 6.0 | 9.6 | 15 |
| Seal test(Liquid) | 2.75 | 4.4 | 7.0 | 11 |
| Seal test(gas) | 0.6 |
| Applicable medium | C | P | R |
| Water, Oil, Steam. | Nitric Acid | Acetic Acid |
| Applicable temperature | ≤425℃ | ≤200℃ | ≤200℃ |
H71 Specification
This kind of check valve is among the products that introduced the advanced foreign technologies. This product adopts the abrasion proof alloy of good quality as the main sealing material and reduces the possibility that the pipe medium will check in low-pressure conditions. Popular among users, the product is widely used in industries of electric power, petroleum, chemical and refining.
| Nominal pressure | 1.0 | 1.6 | 2.5 | 4.0 |
| Strength test(water) | 1.5 | 2.4 | 2.75 | 6.0 |
| Hight seal test(water) | 1.1 | 17.8 | 38.5 | 44 |
| Type | H71HWY-10.16.25.40CPR | H71 HWY-10.16.25.40CPR | H71HWY-10.16.25.40CPR |
| Material code | C | P | R |
| Applicable medium | Water, Steam, Air, Oil. | Nitric Acid | Aceticacid |
| Applicable temperature | ≤425℃ | ≤200℃ | ≤200℃ |
Swing check valve
Specification
1. Design and manufacture comply with BS 1868,JIS B2071
2. Face to face dimension comply
ANSl150-2500Lb, ANSL B16.10
JIS10/20K,JIS B2001
3. Connection flange
ANSI 150-2500Lb, ANSL B16.5
JIS10/20K, JIS B2212, B2214
4. Test and inspection ace to API 598
Construction B.B,Swing Type
Main Material
WCB, WC6, WC9, CF8, CF8M, CF3, CF3M

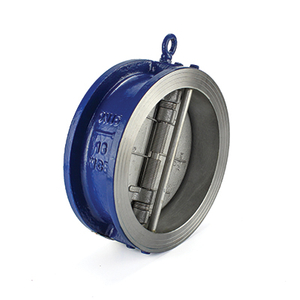

Double flap check valve
Main technique number
| Type | Nominal PN(MPa) | Test stre ngth pressure(MPa) | Test seal Pressure(MPa) | Applicable temperature (℃) | Applicable Media |
H76X-10 H77X-10 | 1.0 | 1.5 | 1.1 | ≤80 | Clean-water Slops Sea |
H76X-16 H77X-16 | 1.6 | 2.4 | 1.76 |
Material for main parts
| Name of part | Body | Disc | Stem | Spring | Seat |
| Material | Bowl-shaped, steel, Stainless steel. | Bowl-shaped, steel, Stainless steel. | Stainless, steel. | Stainless, steel. | NBR, Stanless, steel |
check valve
This valve is a safety device mounted in the pipeline or pump outlet to prevent the pump from inversed running due to the differential water hammer's shock in the pipeline when the pump stops and features a brand-new structure, small volume, light weight,small fluid resisteance, reliable seal, stable open-close, long duration, better energy-saving effect.
Suitable for the pipeline related to water supply and drainage, fire-fighting, warming etc. Systems or the pump outlet to prevent both pump and pipeline from being damaged due to the water hammer produced when the medium flows back and form the silencing effect.
Main technique number
| Nominal pressure PN(mm) | 1.0 | 1.6 |
| Test pressure (Mpa) | Shell strength | 1.5 | 2.4 |
| Sealing performance | 1.1 | 1.76 |
| Working temperature(℃) | ≤80 |
| Applicable medium | Clean-water, Sea. |
| Slow-close time(S) | 0~60 |
Material for main partes
| Name of part | Body | Disc | Stem Oil cylinder Oil cork | Spring | Seat |
| Material | CI Bowl-shaped steel | Bowl-shaped steel stainless stee | Stainless steel | Stainless steel | NBR |
Through many years of research, development and field application experience, FlowX valve the company originated in Rome of Italy has migrated our own production facility to Shanghai of China and has been growing as fast as possible. Aiming at customer-central and quality-central makes FlowX more and more trusted by customers from various fields.
We have designed and manufactured good valve products and control products that meet the stringent flow market`s requirements. FlowX is always providing personalized products and customer service; each batch of ordered product will be always delivered on-time. Meanwhile, FlowX seizes the opportunity and establish the FlowX (Hongkong) company which mainly engaged in FlowX Asia Pacific Sales and after-service. And FlowX Italy will focus on the business development of our own products in European market.
Today FlowX (Shanghai) has shifted the role to the head office of FlowX group, conducting the business and the production for the group company. Major products manufactured and provided are electric actuators, pneumatic actuators, ball valve, butterfly valve, gate valve, check valve and other series products. ISO, CE, GB and other products quality standard system certification were successfully acquired one by one in the past.

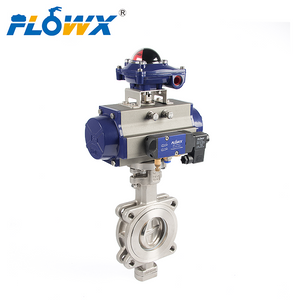

High Performance Butterfly Valve Metal Seat for Water Treatment Plant, Breweries, Drilling Rigs, Heating & Air Conditioning, Paper Industry, Chemical Industry, Gas Plant, Pneumatic Conveyors, Sugar Industry, Waste Effluent Treatment Plant, Cooling Water Circulation, Compressed Air.
