New Energy: Atl Lithium Battery

New Energy: Atl Lithium Battery:

Lithium battery refers to a battery containing lithium (including metallic lithium, lithium alloy, lithium ion, and lithium polymer) in the electrochemical system. Lithium batteries can be roughly divided into two categories: lithium metal batteries and lithium ion batteries. Lithium metal batteries are usually non-rechargeable and contain metallic lithium. Lithium-ion batteries do not contain metallic lithium and are rechargeable.

Equipment mainly includes:

Valves used include:

VIP customers currently working with

Project Case

New Energy Fujian Ningde

Pneumatic clamp ball valve for lithium battery industry

West Italy Energy Site in Shizuishan, Ningxia

New Energy Fujian Ningde

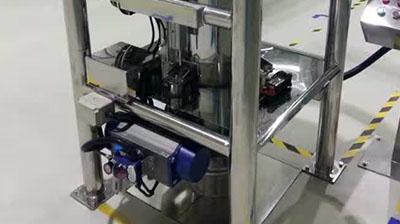

Pneumatic butterfly valve is used in lithium battery industry

Pneumatic three-piece ball valve is used in the lithium battery industry

West Italy Energy Site in Shizuishan, Ningxia

Products

Pneumatic Actuator Thread Ball Valves

Electric Actuator Ball ValveThread Ball Valves

Electric Actuator Thread Ball Valves

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage available: DC12,DC24V,AC110V,AC220V,AC240,AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting/single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 6-7Bars, rack & pinion type.

Valve structure: Threaded(two pieces,three pieces)
Valve size: DN10~DN100
Valve Body: WCB, SS304, SS316, SS316L
Valve Ball: SS304, SS316, SS316L
Valve Pressure: PN10,PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~150℃
Working media: Seawater, Cooling water, Wastewater, pure water

Pneumatic Actuator Wafer Butterfly Valves

Electric Actuator Wafer Butterfly Valves

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage available: DC12, DC24V, AC110V, AC220V, AC240, AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 5-7Bars, rack & pinion type.

Valve structure: wafer type
Valve size: DN40~DN1200
Valve Body: WCB, Ductile iron, SS304, SS316,
Valve Disc: Aluminum bronze C954, SS304, SS316
Valve Seat: EPDM,NBR
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~85℃
Working media: Seawater, Cooling water, Wastewater, pure water

Non return Check Valve

Body: Ductile Iron, WCB or SS304, SS316

Disc: Aluminum bronze C954, SS304,SS316
Seat: NBR, Metal hard
Presure: ANSICL150,PN10 PN16,JIS10K 20K
End connection: Wafer

Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Globe Valve

Material: WCB, SS304, SS316
Seat: Metal hard
Pressure: PN10, PN16, ANSICL150, ANSICL300, JIS10K
End connection: Flange, Thread.

Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Pneumatic Actuator GB Flange Ball Valves

Electric Actuator GB Flange Ball Valves

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage available: DC12,DC24V,AC110V,AC220V,AC240,AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 6-7Bars, rack & pinion type.

Valve structure: RF /FM Flanges
Valve size: DN15~DN200
Valve Body: WCB,SS304,SS316,SS316L
Valve Ball: SS304, SS316, SS316L
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~150℃
Working media: Seawater, Cooling water, Wastewater, pure water

Pneumatic Actuator Flanged Butterfly Valves

Electric Valve Actuators Flanged Butterfly Valves

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage available: DC12, DC24V, AC110V, AC220V, AC240, AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 5-7Bars, rack & pinion type.

Valve structure: Flange type
Valve size: DN50~DN1000
Valve Body: WCB,Ductile iron,SS304,SS316,
Valve Disc: Aluminum bronze C954,SS304,SS316
Valve Seat: EPDM,NBR
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~85℃
Working media: Seawater, Cooling water,Wastewater, pure water

Swing Check Flange Valve

Body: WCB or SS304,SS316

Disc: SS304, SS316
Seat: Metal hard
Presure: ANSICL150, PN10 PN16, JIS10K 20K
End connection: Flange

Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Flexible Rubber Joint

Body: WCB, SS304, SS316
Rubber: Natual Rubber, EPDM, NBR Single ball or two balls
End connection: PN10/PN16/ANSICL150/300/JIS10K
Temperature: -15~85℃
