Ship cabin ballast water system

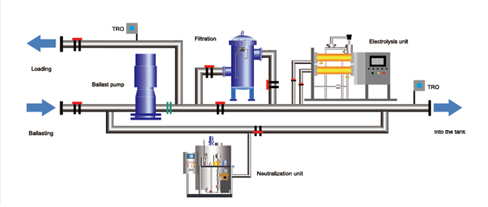

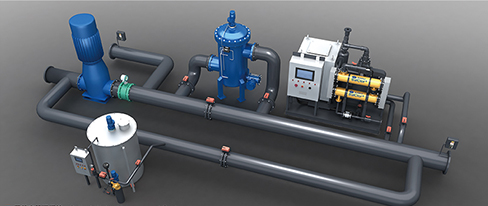

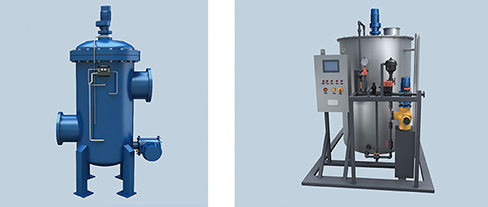

The BWMS treatment process of ballast water is divided into three steps: "filtration", "electrolysis of seawater to produce sodium hypochlorite for sterilization", and "neutralization"

Step 1:

"Filtration"—When filling water, use an automatic backwash filter with a filtration accuracy of 50um to filter all ballast water. This step can filter out most of the marine organisms and solid particles larger than 50um in size.

Step 2:

"Electrolysis of seawater to produce sodium hypochlorite for sterilization"-Take a small flow of seawater from the ballast water main line and flow it through the electrolysis device, electrolyze it to produce a high-concentration sodium hypochlorite solution. After the solution is degassed, it is injected back into the ballast water main pipe Road, mixed with the ballast water of the main pipe and diluted to a specific concentration. This concentration of sodium hypochlorite can effectively kill the remaining plankton, pathogens and their larvae or spores after filtration, and achieve the specified sterilization effect (D-2 and other standards). The concentration of active substances in the ballast water pipeline is determined by TRO Automatic control of analyzer and control system.

Step 3:

"Neutralization"-When the concentration of residual chlorine in the ballast water is less than the IMO specified value during ballast water discharge, the neutralization system will not start, and the ballast water will be directly discharged to the destination sea area; when the concentration of residual chlorine is greater than the IMO When the specified value is set, the neutralization system automatically starts, and the neutralizer is injected into the drainage pipe to neutralize the residual oxidant. The flow of the neutralizer is automatically controlled by the control system according to the concentration information fed back by the TRO detector.
Project Case
Products
Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12,DC24V,AC110V,AC220V,AC240,AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting/single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 6-7Bars, rack & pinion type.

Valve structure: Threaded(two pieces,three pieces)
Valve size: DN10~DN100
Valve Body: WCB, SS304, SS316, SS316L
Valve Ball: SS304, SS316, SS316L
Valve Pressure: PN10,PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~150℃
Working media: Seawater, Cooling water, Wastewater, pure water

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12, DC24V, AC110V, AC220V, AC240, AC380V
Running times: 10S, 30S, 60S

 Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 5-7Bars, rack & pinion type.

Valve structure: wafer type
Valve size: DN40~DN1200
Valve Body: WCB, Ductile iron, SS304, SS316,
Valve Disc: Aluminum bronze C954, SS304, SS316
Valve Seat: EPDM,NBR
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~85℃
Working media: Seawater, Cooling water, Wastewater, pure water

Non return Check Valve Non return Check Valve
Non return Check Valve Non return Check Valve
Body: Ductile Iron, WCB or SS304, SS316
Disc: Aluminum bronze C954, SS304,SS316
Seat: NBR, Metal hard
Presure: ANSICL150,PN10  PN16,JIS10K 20K
End connection: Wafer
Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Globe Valve Globe Valve
Material: WCB, SS304, SS316
Seat: Metal hard
Pressure: PN10, PN16, ANSICL150, ANSICL300, JIS10K
End connection: Flange, Thread.
Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12,DC24V,AC110V,AC220V,AC240,AC380V
Running times: 10S, 30S, 60S

Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 6-7Bars, rack & pinion type.

Valve structure: RF /FM Flanges
Valve size: DN15~DN200
Valve Body: WCB,SS304,SS316,SS316L
Valve Ball: SS304, SS316, SS316L
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~150℃
Working media: Seawater, Cooling water, Wastewater, pure water

Electric actuator specifcation: ON-OFF TYPE, 4- 20MA regulator type function Explosive-proof or non explosive proof.
Voltage  available: DC12, DC24V, AC110V, AC220V, AC240, AC380V
Running times: 10S, 30S, 60S

 Pneumatic actuator specification: Double acting /single acting Pneumatic actuator, NAMUR mount Airline. Anodized aluminum actuator, working air pressure: 5-7Bars, rack & pinion type.

Valve structure: Flange type
Valve size: DN50~DN1000
Valve Body: WCB,Ductile iron,SS304,SS316,
Valve Disc: Aluminum bronze C954,SS304,SS316
Valve Seat: EPDM,NBR
Valve Pressure: PN10, PN16, ANSICL150/CL300/CL600, JIS10K/20K
Working Temperature: -15~85℃
Working media: Seawater, Cooling water,Wastewater, pure water

Swing Check Flange Valve Swing Check Flange Valve
Body: WCB or SS304,SS316
Disc: SS304, SS316
Seat: Metal hard
Presure: ANSICL150, PN10  PN16, JIS10K 20K
End connection: Flange
Working Temperature: -15~120℃
Working media: Seawater, Cooling water, Wastewater, pure water

Flexible Rubber Joint Flexible Rubber Joint
Body: WCB, SS304, SS316
Rubber: Natual Rubber, EPDM, NBR Single ball or two balls
End connection: PN10/PN16/ANSICL150/300/JIS10K
Temperature: -15~85℃
