Availability: | |
---|---|
FLX10004
Flowx

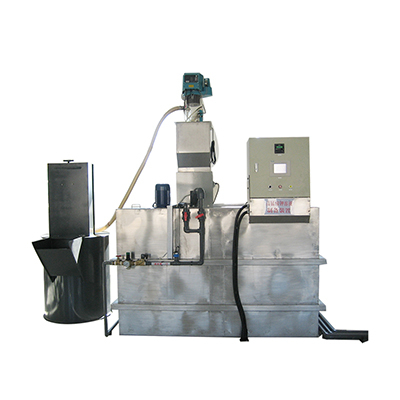

Three-box automatic dry powder dissolution equipment is a fully automatic polymer electrolyte infusion system. The solution range is from 400L/H of C400 to 8000L/H of C8000, and the concentration range is set at 0.05%--0.5%.It is used in applications where automatic preparation of liquid polyelectrolyte solutions is required.The equipment is widely used in water treatment industry, waste water treatment industry and paper industry.
It equipment consists of powder storage and feeding system, dry powder metering and feeding system, dissolved water system, storage and stirring system and local control system.
Material Parameter
No. | Name | Material |
1 | Body | PP/SS304 |
2 | Screw Feeder | SS304 |
3 | Bin | SS304 |
4 | Pipe | SS304/UPVC |
5 | Control Cabinet | WCB/SS304 |
Technical Parameter
Type | 400 | 1000 | 2000 | 4000 |
Allocative ability(L/h) | 400 | 1000 | 2000 | 4000 |
Dilution water(L/h) | 1500 | 1500 | 3000 | 6000 |
Dilute-phase pressure(Bar) | 3-5 | 3-5 | 3-5 | 3-5 |
Dry out the quantity(L/h) | 2-18 | 2-18 | 2-18 | 11-100 |
Water pipe(DN) | 1 | 1 | 1 | 11/2 |
Outlet size(DN) | 25 | 25 | 32 | 40 |
Power system | 1.5 | 2.5 | 3.2 | 5 |
Application
Flowx was established in 2006, we have been focusing on the development, production, sales and service of self-controlled valves for many years. Our products mainly include butterfly valves, ball valves, regulating valves, general valves, actuators and accessories.
Through more than ten years of on-site application and inspection, our products have been able to meet the stringent requirements of today's fluid handling industry, and the variety of products has increased year by year, involving a wider range of industries.
In 2018, we established a valve production base in Jinshan District, Shanghai, covering an area of 25,000 square meters. We have introduced more advanced production equipment and expanded a number of production lines, which will provide more and more for the whole country and the world in the future. Good quality self-control valves and accessories.
Three-box automatic dry powder dissolution equipment is a fully automatic polymer electrolyte infusion system. The solution range is from 400L/H of C400 to 8000L/H of C8000, and the concentration range is set at 0.05%--0.5%.It is used in applications where automatic preparation of liquid polyelectrolyte solutions is required.The equipment is widely used in water treatment industry, waste water treatment industry and paper industry.
It equipment consists of powder storage and feeding system, dry powder metering and feeding system, dissolved water system, storage and stirring system and local control system.
Material Parameter
No. | Name | Material |
1 | Body | PP/SS304 |
2 | Screw Feeder | SS304 |
3 | Bin | SS304 |
4 | Pipe | SS304/UPVC |
5 | Control Cabinet | WCB/SS304 |
Technical Parameter
Type | 400 | 1000 | 2000 | 4000 |
Allocative ability(L/h) | 400 | 1000 | 2000 | 4000 |
Dilution water(L/h) | 1500 | 1500 | 3000 | 6000 |
Dilute-phase pressure(Bar) | 3-5 | 3-5 | 3-5 | 3-5 |
Dry out the quantity(L/h) | 2-18 | 2-18 | 2-18 | 11-100 |
Water pipe(DN) | 1 | 1 | 1 | 11/2 |
Outlet size(DN) | 25 | 25 | 32 | 40 |
Power system | 1.5 | 2.5 | 3.2 | 5 |
Application
Flowx was established in 2006, we have been focusing on the development, production, sales and service of self-controlled valves for many years. Our products mainly include butterfly valves, ball valves, regulating valves, general valves, actuators and accessories.
Through more than ten years of on-site application and inspection, our products have been able to meet the stringent requirements of today's fluid handling industry, and the variety of products has increased year by year, involving a wider range of industries.
In 2018, we established a valve production base in Jinshan District, Shanghai, covering an area of 25,000 square meters. We have introduced more advanced production equipment and expanded a number of production lines, which will provide more and more for the whole country and the world in the future. Good quality self-control valves and accessories.
