What is the Details of our butterfly Valve?
low price DN50 wafer connection 10 inch stainless steel pneumatic butterfly valve
Basic information:
Pneumatic butterfly valve is consist of double Or single acting pneumatic piston actuator and butterfly valve
Connection has wafer type and Flange type
Pneumatic actuator butterfly valve has a Simple structure,Small size and light weight
Stable performance, Widely used in various industries for both on-off and regulating service
Can be equipped with positioner, limit switch, hand wheel, solenoid valve etc.
| Pneumatic type | Single or double action |
| Actuator pressure | 0.3~0.8MPa |
| Fluid | Air |
| Standard | ISO 5211 |
| Butterfly valve type | wafer/flanged |
| Valve body material | Cast Iron, stainless steel |
| Disc material | cast iron, stainless steel |
| Seat material | NBR, EPDM, PTFE |
And you can contact with me for the price and more detailed technical data
What is the Connection Standard of our butterfly Valve?
Adoptive Standards
1.Valve Design: API 609, MSS SP-67
2.Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
3.Pressure Test: API 598
4.Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
5.Top Flange: ISO5211

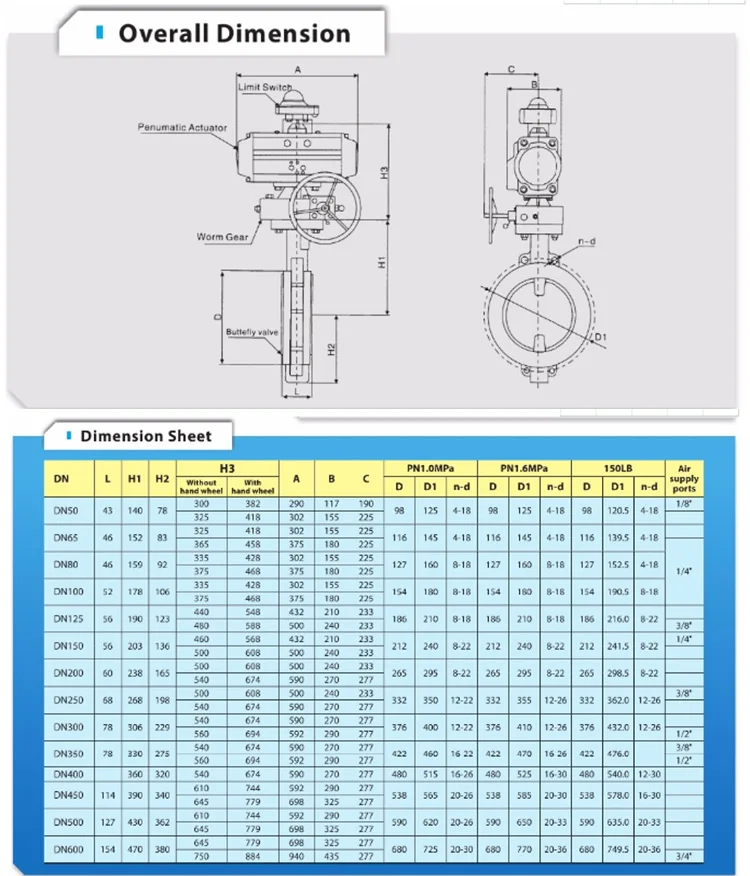

What is Overall Dimension and Feature of our butterfly Valve?
Features
1.vertical center line disc
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
What is Application of our butterfly valve?
Application
1.Water Treatment Plant 2.Breweries
3.Drilling Rigs 4. Heating & Air Conditioning
5.Paper Industry 6.Chemical Industry
7.Gas Plant 8.Pneumatic Conveyors
9.Sugar Industry 10.Waste Effluent Treatment Plant
11.Cooling Water Circulation 12.Compressed Air
