Pneumatic single-seat regulating valve/pneumatic UPVC butterfly valve appeared on the site of water treatment ultrafiltration system

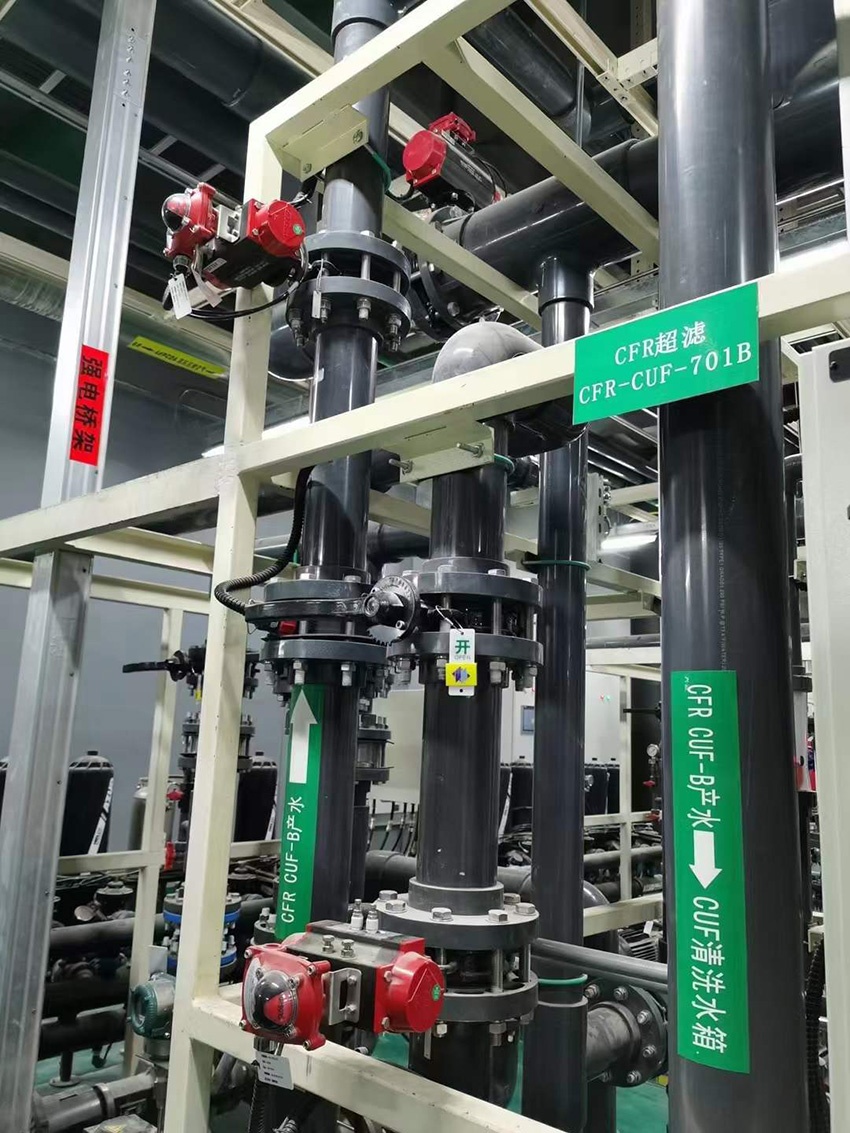

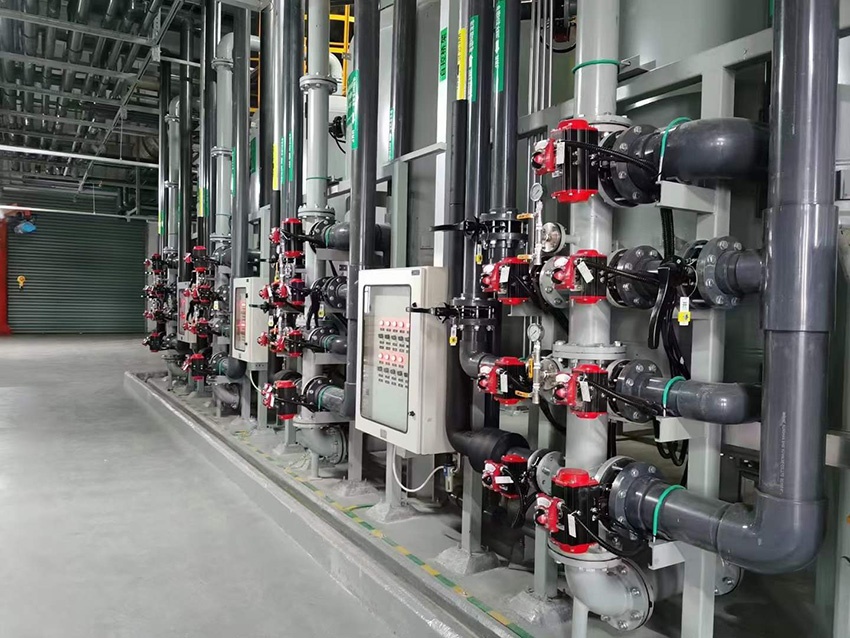

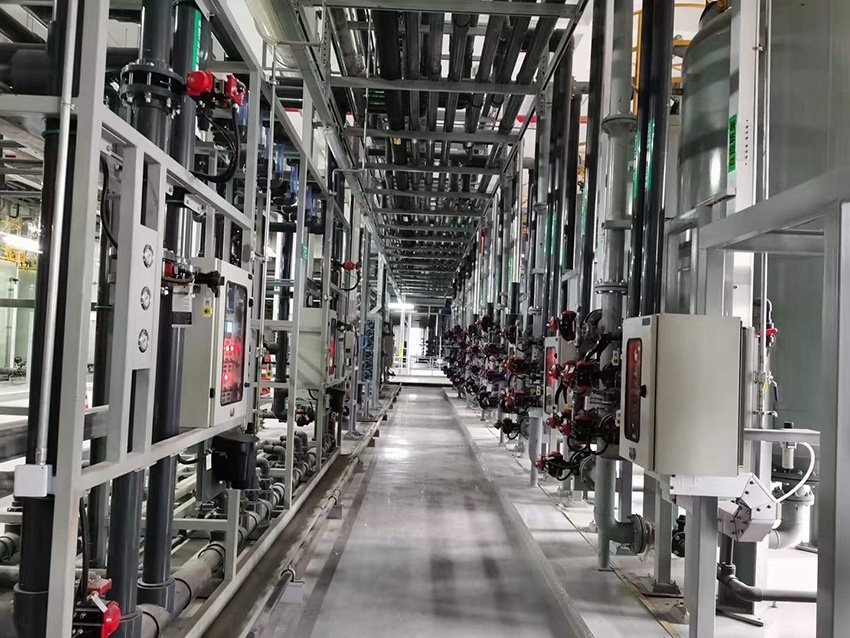

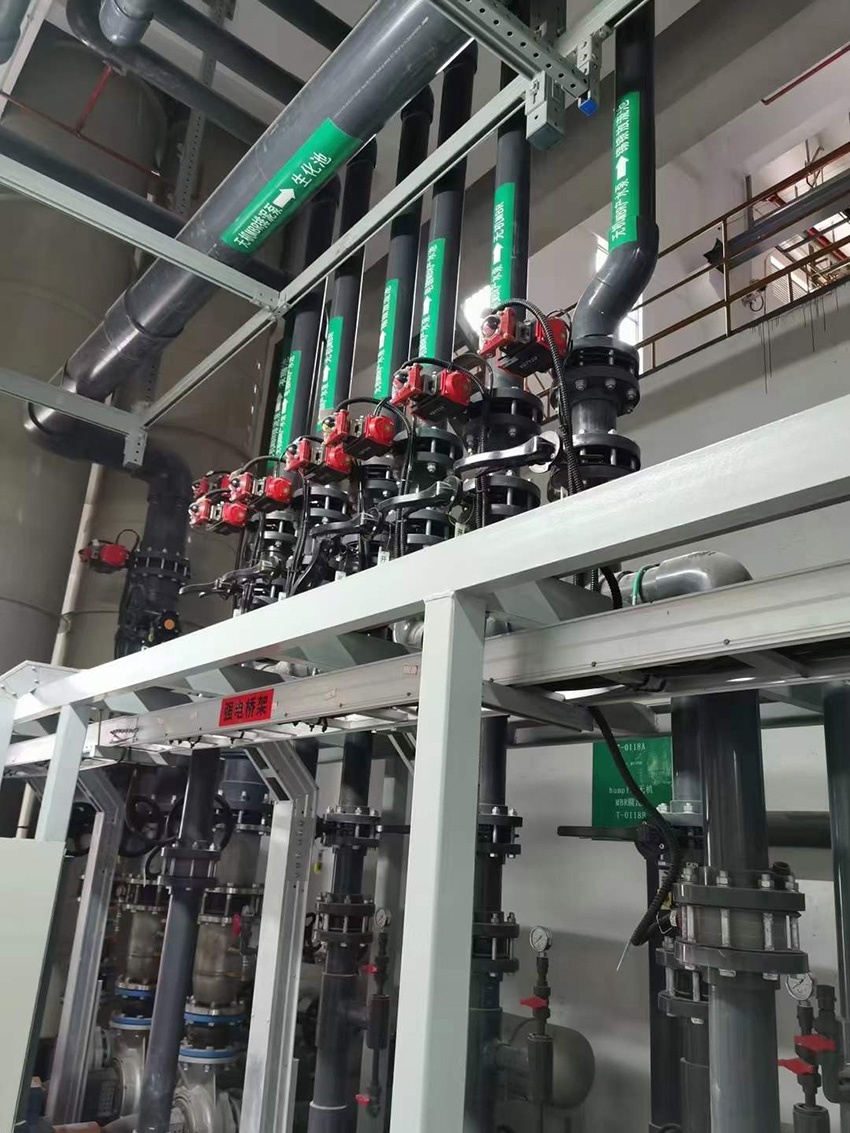

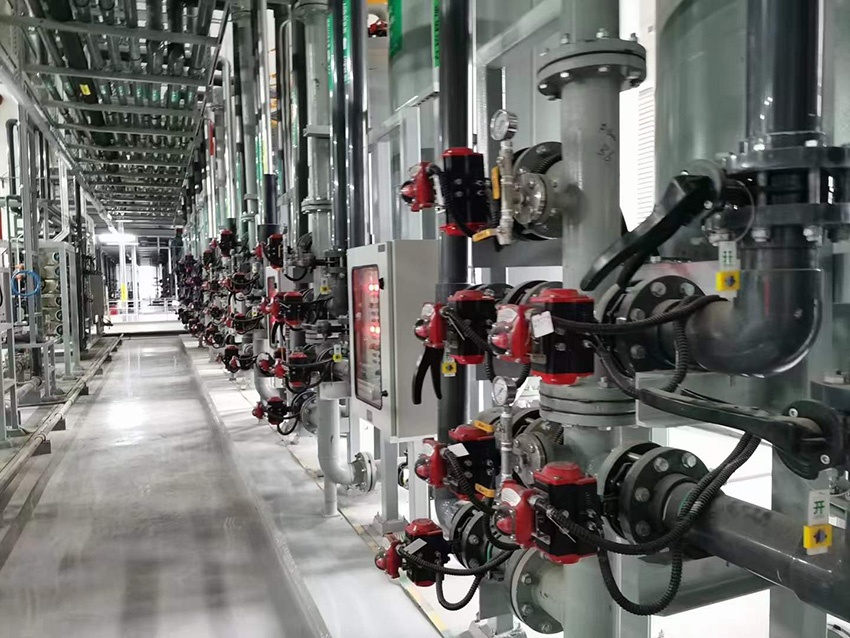

Today's case sharing: Pneumatic single-seat regulating valve/pneumatic UPVC butterfly valve appeared on the site of water treatment ultrafiltration system (Australian sole proprietorship circuit board manufacturer)

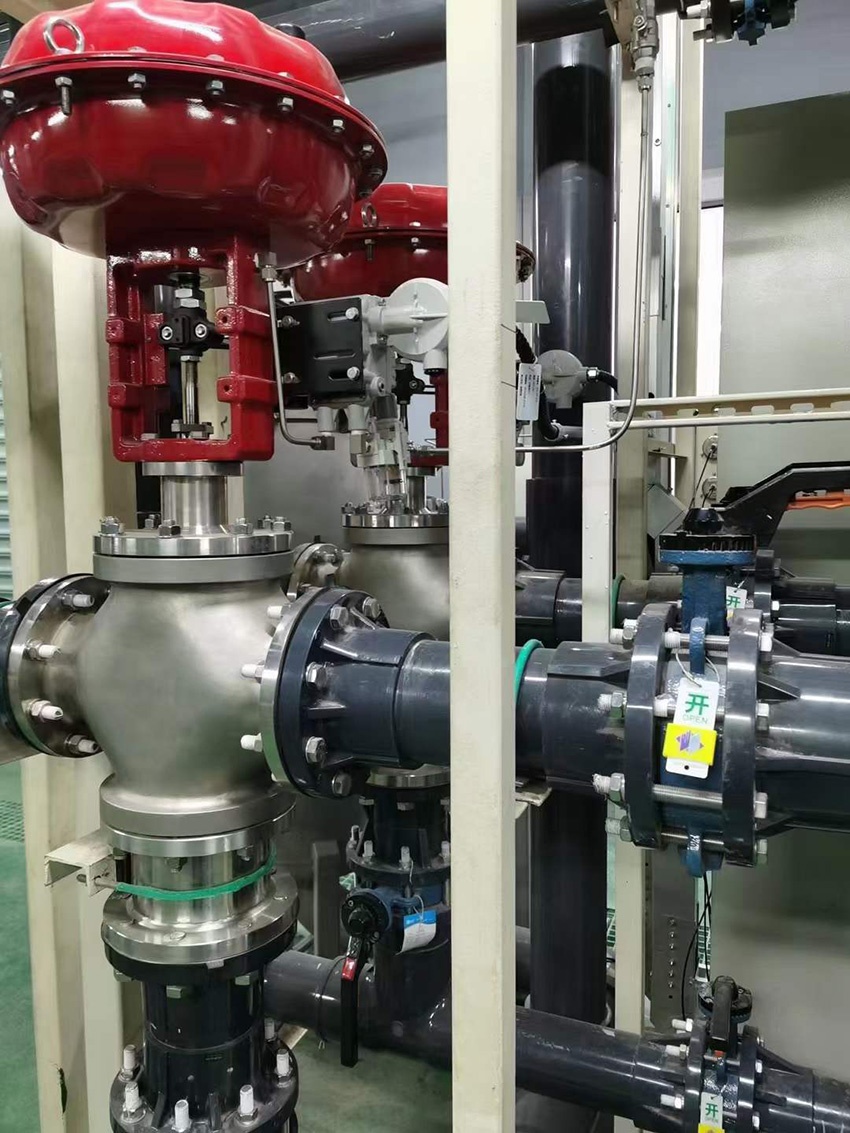

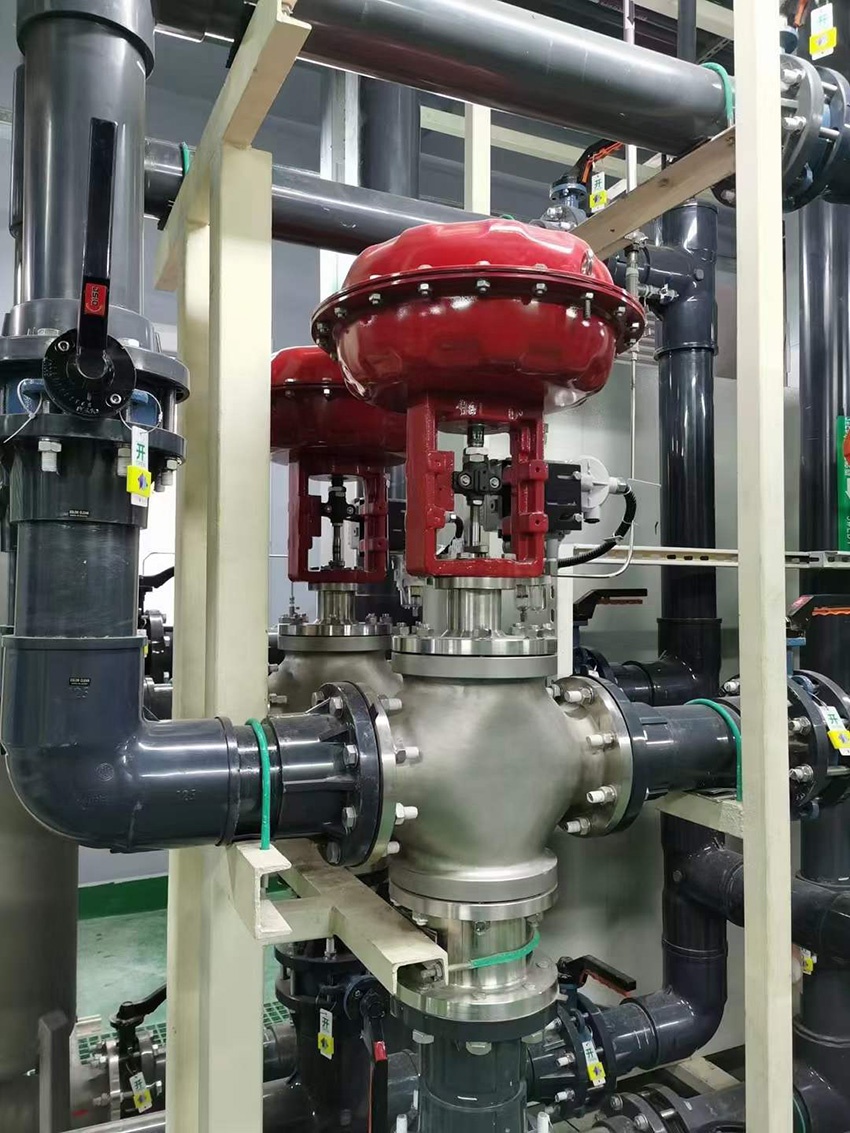

What is Pneumatic single seat control valve？

Pneumatic single seat control valve use the compressed air as the power source, take the cylinder as the actuator, and with the aid of the electric valve positioner, the converter solenoid valve, the guard valve and other accessories to drive the valve, to achieve on-off or proportional regulation Receive the control signal of industrial automation control system to adjust the flow, pressure, temperature and other process parameters. Pneumatic control valve is characterized by simple control, rapid response, and essentially safe, no additional explosion-proof measures.

Pneumatic single seat control valve small, light, high performance, large capacity, is in line with IEC standards of a new generation of general control valve products. It is suitable for general fluid medium and process conditions of the production process system. The utility model is composed of a pneumatic multi-spring film actuator and a low flow resistance single-seat valve. The new actuator has the advantages of high degree, light weight, simple installation and calibration, compact structure, smooth flow passage and large flow coefficient.

Pneumatic single seat control valve stable operation, with reliable action characteristics, small seat leakage, accurate flow characteristics, wide adjustable range and so on. Its unique advantages in a wide range of users to achieve high-quality control effect.What is Pneumatic UPVC butterfly valve

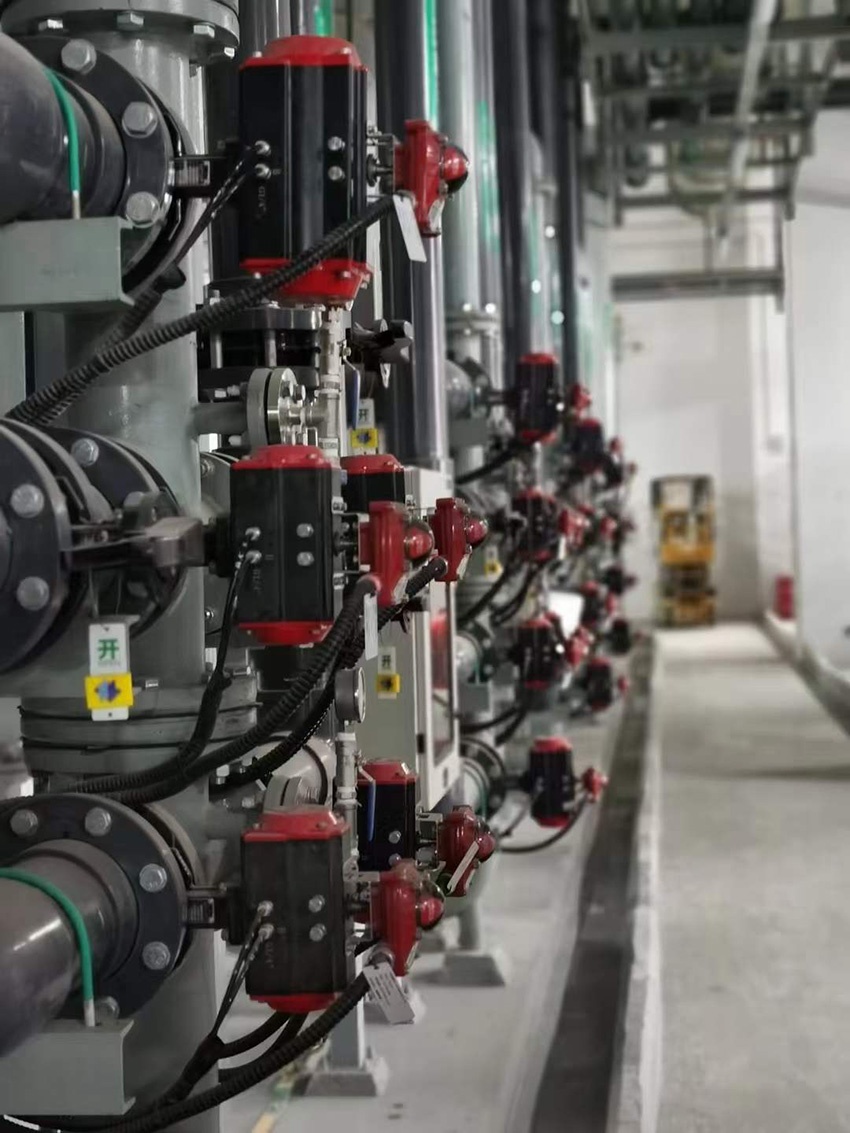

What Is Pneumatic UPVC Butterfly Valve?

The principle of Pneumatic UPVC Butterfly Valve is to meet the needs of different occasions. The principle of the new pneumatic UPVC butterfly valve has 0-90 degrees, 0-120 degrees, and 0-180 degrees. Pneumatic UPVC butterfly valves can also provide angular stroke actuators such as 0-140 degrees. 0-160 degrees, etc., when the pneumatic UPVC butterfly valve is selected, the safety value is added to the determined torque to increase the safety value by 25%, the pneumatic UPVC butterfly valve non-lubricating slurry liquid medium increases the safety value by 30%, the pneumatic UPVC butterfly valve The non-lubricated dry gas medium increases the safety value by 40%, the non-lubricated gas conveyed particulate material medium increases the safety value by 60%, and the pneumatic UPVC butterfly valve increases the safety value by 20% for the clean, low-friction lubricating medium.

Pneumatic UPVC Butterfly Valve body with light weight, strong corrosion resistance, compact and beautiful appearance, light weight body easy to install, a wide range of applications, material hygiene without DU, wear-resistant, easy to disassemble, easy maintenance, suitable for fluid: water , air, oils, corrosive chemical liquids, etc.
