One-Piece, Two-Piece, and Three-Piece Ball Valves: What’s the Difference and How to Choose the Right One
Views: 0 Author: Site Editor Publish Time: 2025-04-25 Origin: Site
When selecting ball valves for your pipeline system, it's important to understand the structural differences, applications, and maintenance requirements of one-piece, two-piece, and three-piece ball valves. As a professional valve manufacturer, we aim to provide you with practical insights that help you choose the most suitable valve for your needs—ensuring safety, efficiency, and long-term reliability.

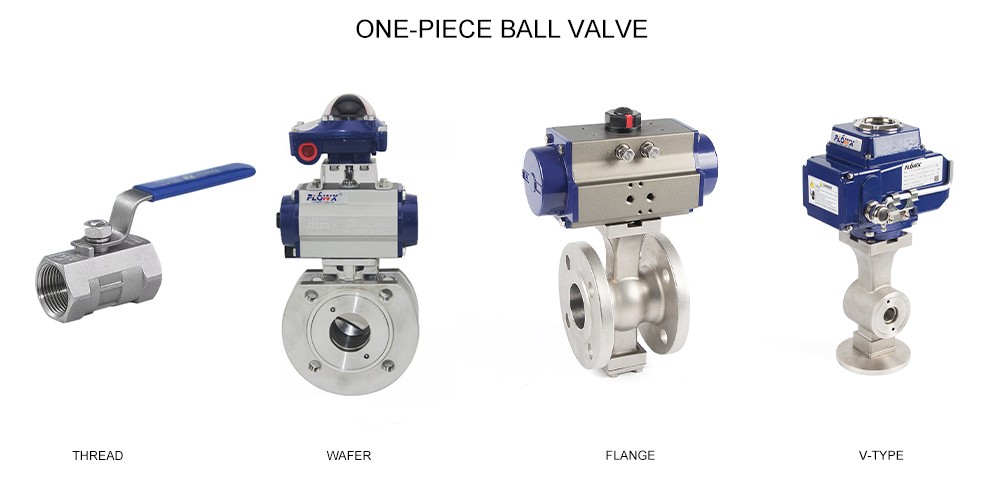

1. What Is a One-Piece Ball Valve?
A one-piece ball valve features a single-body construction, making it compact and lightweight. The ball, stem, and seat are inserted from one end, which limits internal space and leads to a reduced port design—meaning its flow capacity is slightly lower than full-bore valves.
Key Features:
Cost-effective: Ideal for low-pressure applications where full flow is not critical.
Connection types: Threaded (often 55° NPT for enhanced sealing), flanged, and wafer types.
Material: Typically made of WCB carbon steel or CF8/CF8M stainless steel.
Applications: Commonly used in low-pressure pipelines for water, gas, or non-corrosive fluids.
Special Versions:
High-temperature drain ball valves: Designed to prevent leaks, suitable for steam or heat-transfer oils.
Insulated ball valves: Used for media that tend to crystallize or solidify, with heating jackets for thermal insulation.
2. What Is a Two-Piece Ball Valve?
A two-piece ball valve consists of a main body and a secondary body. The valve ball and stem are installed into the main body, and the secondary body is screwed or bolted in place. This allows for full port flow and is suitable for a wide range of industrial applications.
Key Features:
Full-bore design: Offers minimal flow resistance.
Versatile connections: Threaded (internal, external, or both), flanged.
Widely used: Ideal for applications that require frequent on/off operation and moderate pressure.
3. What Is a Three-Piece Ball Valve?
The three-piece ball valve has a main valve body and two end caps, which are bolted together. This design allows for easy disassembly, making it ideal for systems that require regular maintenance or cleaning.
Key Features:
Full port: Like the two-piece design, it allows maximum flow.
Easy to maintain: No need to remove the entire valve from the pipeline. Simply loosen the bolts to access internal components.
Multiple connection options: Threaded, socket weld, butt weld, extended welding necks for high-temp protection.
Applications: Ideal for chemical, food processing, pharmaceutical, and other industries requiring hygienic or frequent servicing.
4. Comparison Chart: One-Piece vs Two-Piece vs Three-Piece Ball Valves
| Feature | One-Piece | Two-Piece | Three-Piece |
|---|---|---|---|
| Structure | Single-body | Two-body | Three-body |
| Port Type | Reduced | Full | Full |
| Flow Capacity | Moderate | High | High |
| Maintenance | Difficult | Moderate | Easy (inline servicing) |
| Installation Space | Compact | Standard | Requires slightly more space |
| Cost | Low | Medium | High |
| Best For | Low-pressure, general use | General industrial applications | High-maintenance, sanitary, or corrosive systems |
5. How to Choose the Right Ball Valve for Your Project?
When selecting a ball valve, consider:
Pressure and temperature conditions
Flow requirements
Maintenance frequency
Installation space
Budget constraints
For cost-sensitive, low-pressure systems, a one-piece valve might be sufficient. For general industrial pipelines, a two-piece valve balances performance and cost. If cleaning, replacement, or frequent maintenance is expected, a three-piece valve offers the best long-term value.
